BL610 BL510 Cemented Carbide Rods With Helix Coolant Holes

Xiamen Betalent Carbide Co.,Ltd

BL610 BL510 Cemented Carbide Rods With Helix Coolant Holes

  • 1
  • 2
  • 3

Brand Name : Betalent

Certification : SGS

Place of Origin : China

MOQ : 1PC

Price : 2USD to 200USD per piece

Payment Terms : T/T

Supply Ability : 2Ton/Month

Delivery Time : 5-8 working days

Packaging Details : Carton packing with proper stuffings

Material : Cemented carbide

Name : Helix carbide rod

Application : For drilling cutter

Contact Now

Helix Carbide Rod, Carbide Rod With Cooling, Carbide Grade For Drilling, Cemented Carbide


Carbide rod, Solid carbide for drilling cutters, carbide grade for drilling, cemented carbide


Carbide rod is one series product of Betalent carbide materials.


Betalent carbide has different carbide grades for cutting tools, Below grade table listing the two very good grades for drilling. It is different with milling grades.


GradeCo%Grain SizeDensity (g/cm)Hardness(HRA)TRS N/mm2Application
BL610100.5514.4924300For drills,end mills with coolent holes.
BL510100.514.492.44300Grade for end mill millining soft steel and general steel, and for internal coolant drills drilling soft steel, general steel, hard steel and stainless steel.

Helix holes carbide rods are for high quality drill bits, with the internal coolant helix holes inside, the coolant along with the drilling blade can enable the drill bits the accurate and high efficient cooling.


specification:

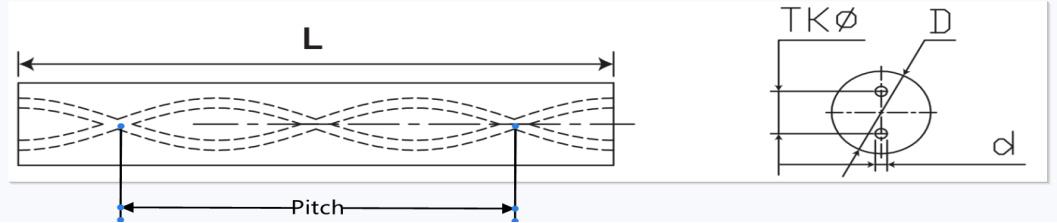

1, Two helix coolant hole carbide rod:


Standard Specification
外徑d 孔径 (mm)Tol.公差(mm)TK 孔距 (mm)Tol.公差(mm)Pitch螺旋範圍
3.50.40±0.11.60±0.1515.7-17.0
4.50.60±0.12.10±0.1520.9-22.7
5.50.70±0.12.40±0.1526.2-28.4
6.50.70±0.152.40±0.1531.4-34.0
7.51.00±0.153.50±0.1536.6-39.7
8.51.00±0.153.80±0.1541.9-45.4
9.51.40±0.154.50±0.347.1-51.0
10.61.40±0.154.50±0.352.3-56.7
11.61.40±0.154.90±0.457.5-62.4
12.61.40±0.155.85±0.462.8-68.1
13.61.75±0.26.10±0.468.0-73.7
14.61.75±0.26.70±0.473.2-79.4
15.71.75±0.27.30±0.478.5-85.1
16.71.75±0.27.90±0.483.7-90.7
17.751.75±0.28.50±0.488.9-96.3
18.752.00±0.259.15±0.494.1-102.0
19.752.00±0.259.70±0.499.3-107.7
20.752.00±0.259.90±0.5104.6-113.4
22.752.00±0.2511.10±0.5114.96-124.62
25.752.00±0.2512.80±0.5130.64-141.61

2, Three spiral coolant carbide rod specification


Outer D (mm)OD Tol. (mm)TK (mm)Distence Tol. (mm)Inner Dia. (mm)ID Tol. (mm)Pitch (mm)Pitch Tol. (mm)
6+0.6/+1.02.75-0.40.7±0.1032.7±0.7
8+0.7/+1.43-0.41±0.1543.53±0.9
10+0.7/+1.45-0.61.4±0.1554.41±1.2
12+0.7/+1.46-0.61.4±0.1565.3±1.3
14+0.7/+1.57-0.81.75±0.2076.18±1.5
16+0.7/+1.68-0.81.75±0.2087.06±1.8
18+0.7/+1.79.55-0.82±0.2597.95±2.0
20+0.7/+1.710-12±0.25108.83±2.2

MOQ: No MOQ for common items. 30KGS for special customized items.


Samples: Small quantity samples can be offered.


Delivery time: Standard items can be available from stock can be shipped in two days. New make items can be finished in 15days in most situations. For customized items, please check order by order.


After sale service:


1, The samples testing is strongly recommended before placing mass order, to confirm the grade we select is fit your application. Even the same grade name popular in the market, you may need to trial when you swich supplier. The sample trial is to find out the slightest difference, and change the grade if sample grade can not meet your requirement. When sampels testing is suceed, you can place small order then biger, step by step, then you can find Betalent is a good supplier who can do long time business with.


2, All service will not stop at the moment you receive the shipment. We are always here, to help you to use our products satisfiedly, any point you want to improve in our side, please communicate your contact in our company. We will help base our tens more years in cemented carbide and our relationship in cutter factories and find the solution for you.


3, Any complaint proved to be our products quality problem, we can accept free replacement or refund.
